SY54020R Datasheet - Micrel Semiconductor

SY54020R Low Voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer

The SY54020R is a fully differential, low voltage 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer with active-low Enable (/EN) and Fail-Safe Input (FSI). The Enable is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a ru.

SY54020R Features

* 1.2V/1.8V/2.5V CML 1:4 Fanout Buffer with FSI

* Active-low Enable (/EN) input to disable the outputs

* Guaranteed AC performance over temperature and voltage:

* DC-to > 3.2Gbps Data throughput

* DC-to > 2.5GHz Clock throughput

SY54020R_MicrelSemiconductor.pdf

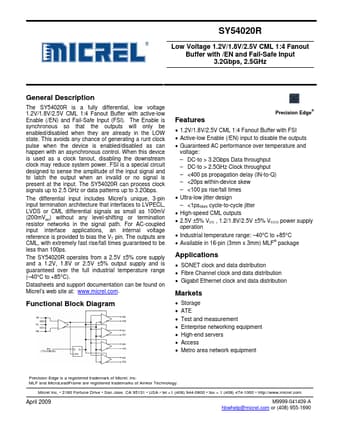

Preview of SY54020R PDF
SY54020R Datasheet Preview Page 2 SY54020R Datasheet Preview Page 3

Datasheet Details

Part number:

SY54020R

Manufacturer:

Micrel Semiconductor

File Size:

620.45 KB

Description:

Low voltage 1.2v/1.8v/2.5v cml 1:4 fanout buffer.
