SY58035U - 1:6 LVPECL FANOUT BUFFER

Micrel Semiconductor

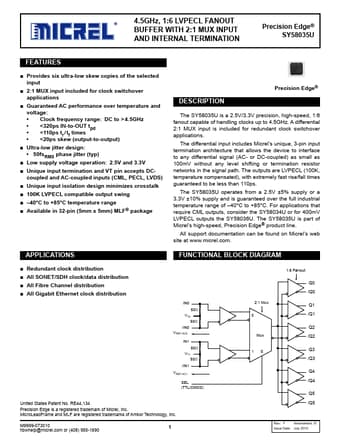

SY58035U Datasheet Preview — Preview of SY58035U PDF

Datasheet Details

Part number	SY58035U
Manufacturer	Micrel Semiconductor
File Size	471.64 KB
Description	1:6 LVPECL FANOUT BUFFER
Datasheet	SY58035U_MicrelSemiconductor.pdf

SY58035U Product details

Description

Precision Edge® The SY58035U is a 2.5V/3.3V precision, high-speed, 1:6 fanout capable of handling clocks up to 4.5GHz.A differential 2:1 MUX input is included for redundant clock switchover applications.The differential input includes Micrel’s unique, 3-pin input termination architecture that allows the device to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path.The outputs are LVPECL (10

Features

Provides six ultra-low skew copies of the selected input.
2:1 MUX input included for clock switchover.
