SY58033U

Ultra-precision 1:8 Fanout Buffer

SY58033U Features

* Precision 1:8, 400mV LVPECL fanout buffer

* Low-jitter performance:

* 76fsRMS phase jitter (typ)

* Guaranteed AC performance over temperature and voltage:

* Clock frequency range:  DC to 5.5GHz

SY58033U General Description

Precision Edge® The SY58033U is a 2.5V/3.3V precision, high-speed, fully differential 400mV LVPECL 1:8 fanout buffer. The SY58033U is optimized to provide eight identical output copies with less than 20ps of skew and only 76fsRMS phase jitter. It can process clock signals as fast as 5.5GHz. The di.

SY58033U Datasheet (691.37 KB)

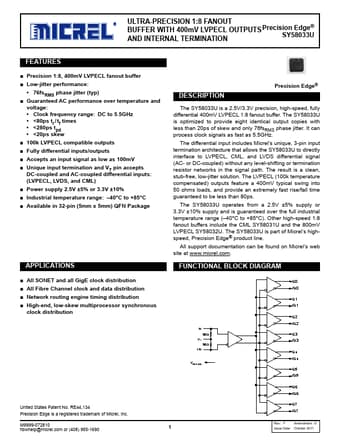

Preview of SY58033U PDF

Datasheet Details

Part number:

SY58033U

Manufacturer:

Micrel Semiconductor

File Size:

691.37 KB

Description:

Ultra-precision 1:8 fanout buffer.
Micrel, Inc. ULTRA-PRECISION 1:8 fanout buffer WITH 400mV LVPECL outputs and INTERNAL TERMINATION Precision Edge® Precision ESdY5g8e0®33U SY58033U .
