SY88289CL CML Limiting Post Amplifier

Micrel Semiconductor

Description

SY88289CL 3.3V, 3.2Gbps CML Limiting Post Amplifier with High-Gain TTL Loss-of-Signal General .
Features The SY88289CL low-power, high-sensitivity, limiting. Single 3.

📥 Download Datasheet

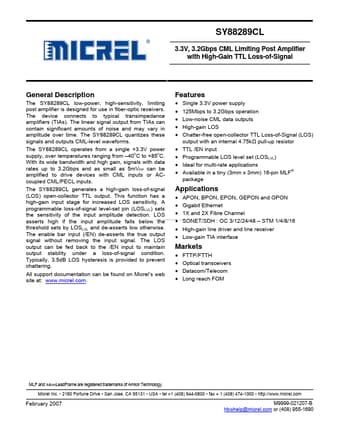

SY88289CL Datasheet Preview — Preview of SY88289CL PDF

Datasheet Specifications

Part number: SY88289CL
Manufacturer: Micrel Semiconductor
File Size: 368.35 KB
Datasheet: SY88289CL_MicrelSemiconductor.pdf
Description: CML Limiting Post Amplifier

Features

* The SY88289CL low-power, high-sensitivity, limiting
* Single 3.3V power supply post amplifier is designed for use in fiber-optic receivers.
* 125Mbps to 3.2Gbps operation The device connects to typical transimpedance
* Low-noise CML data outputs amplifiers (TIAs). The linear

Applications

* rates up to 3.2Gbps and as small as 5mVPP can be
* Available in a tiny (3mm x 3mm) 16-pin MLF® amplified to drive devices with CML inputs or ACpackage coupled CML/PECL inputs. The SY88289CL generates a high-gain loss-of-signal Applications (LOS) open-collector TTL output. This function has a
