SY89321L - 3.3V DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR

Description

The SY89321L is a differential LVPECL/CML/LVDSto-LVTTL translator requiring only a single +3.3V power.

Features

  • s 3.3V power supply s 1.9ns typical propagation delay s 275MHz fMAX s Differential LVPECL/CML/LVDS inputs s 24mA LVTTL outputs s Flow-through pinouts s Internal input resistors: pulldown on IN, pulldown and pullup on /IN s Q output will default LOW with inputs open s VBB output s Available in ultra-small 8-pin MLF® (2mm x 2mm) package BLOCK.

📥 Download Datasheet

Datasheet preview – SY89321L

Datasheet Details

Part number SY89321L
Manufacturer Micrel Semiconductor
File Size 43.22 KB
Description 3.3V DIFFERENTIAL LVPECL-to-LVTTL TRANSLATOR
Datasheet download datasheet SY89321L Datasheet
Additional preview pages of the SY89321L datasheet.

📁 Similar Datasheet

  • SY89306V - 3.3V/5V 2.5GHz Differential PECL/ECL Receiver/Buffer (Microchip)
  • SY89206V - DIFFERENTIAL PECL/ECL RECEIVER/BUFFER (MICREL)
  • SY89216V - DIFFERENTIAL PECL/ECL RECEIVER/BUFFER (MICREL)
  • SY89230U - Clock Divider (Micrel)
  • SY89231U - Clock Divider (Micrel)
  • SY89297U - Precision CML Dual-Channel Programmable Delay (Microchip)
  • SY89874U - Programmable Clock Divider/Fanout Buffer (Microchip)
  • SY8002A1 - 2A Synchronous Step Down Regulator (Silergy)
  • SY8002E1 - 2A Synchronous Step Down Regulator (Silergy)
  • SY8002I - 2A Synchronous Step Down Regulator (Silergy)
Other Datasheets by Micrel Semiconductor
  • SY89322V - LVTTL/LVCMOS-to-DIFFERENTIAL LVPECL TRANSLATOR
  • SY89323L - 3.3V DUAL DIFFERENTIAL LVPECL TO LVTTL TRASLATOR
  • SY89325L - 3.3V/5V 1.5Gbps DIFFERENTIAL CML/PECL/LVPECL-to-LVDS TRANSLATOR
  • SY89325V - DIFFERENTIAL CML/PECL/LVPECL-to-LVDS TRANSLATOR
  • SY89327L - 3.3V 2.5Gbps ANY INPUT-to-LVPECL DIFFERENTIAL TRANSLATOR
  • SY89328L - 3V LVTTL-TO-DIFFERENTIAL
  • SY89329V - LVTTL/LVCMOS-to-DIFFERENTIAL LVPECL TRANSLATOR
  • SY89306V - PECL/ECL DIFFERENTIAL RECEIVER/BUFFER

Full PDF Text Transcription

Click to expand full text

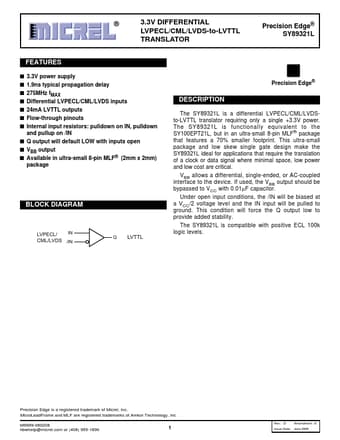

Micrel, Inc. 3.3V DIFFERENTIAL LVPECL/CML/LVDS-to-LVTTL TRANSLATOR Precision Edge® Precision ESdYg89e3®21L SY89321L FEATURES s 3.3V power supply s 1.9ns typical propagation delay s 275MHz fMAX s Differential LVPECL/CML/LVDS inputs s 24mA LVTTL outputs s Flow-through pinouts s Internal input resistors: pulldown on IN, pulldown and pullup on /IN s Q output will default LOW with inputs open s VBB output s Available in ultra-small 8-pin MLF® (2mm x 2mm) package BLOCK DIAGRAM LVPECL/ IN CML/LVDS /IN Q LVTTL Precision Edge® DESCRIPTION The SY89321L is a differential LVPECL/CML/LVDSto-LVTTL translator requiring only a single +3.3V power. The SY89321L is functionally equivalent to the SY100EPT21L, but in an ultra-small 8-pin MLF® package that features a 70% smaller footprint.
