PL613-01 - 8-Output Clock

The PL613-01 is an advanced triple PLL design based on PicoPLLTM, world’s smallest programmable clock, technology. This advanced technology allows the 8 output PL613-01 to fit in to a small 3mmx3mm QFN package or (T)SSOP for high performance, lowpower, low-cost applications. Besides its small form f.

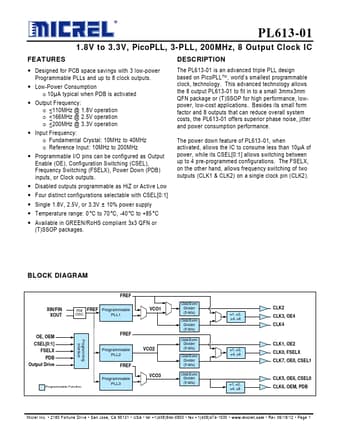

PL613-01 1.8V to 3.3V, PicoPLL, 3-PLL, 200MHz, 8 Output Clock IC FE AT UR E S Designed for PCB space savings with 3 low-power Programmable PLLs and up to 8 clock outputs. Low-Power Consumption o 10µA typical when PDB is activated Output Frequency: o <110MHz @ 1.8V operation o <166MHz @ 2.5V operation o <200MHz @ 3.3V operation Input Frequency: o Fundamental Crystal: 10MHz to 40MHz o Reference Input: 10MHz to 200MHz Programmable I/O pins can be configured as Output.

PL613-01 Features

* of these products is mentioned in the following paragraphs. PLL Programming The three PLLs in PL613-01 are fully programmable. Each PLL is equipped with an 8-bit input frequency divider (R-Counter) and an 11-bit VCO frequency feedback loop (M-Counter) divider. The three PLL outputs are transferred
