ML7924A Datasheet (Micro Electronics) - 3-TERMINAL NEGATIVE VOLTAGE REGULATOR

ML7924A, 3-TERMINAL NEGATIVE VOLTAGE REGULATOR

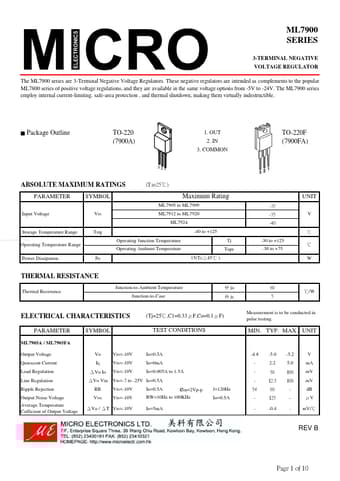

ML7900 SERIES 3-TERMINAL NEGATIVE VOLTAGE REGULATOR The ML7900 series are 3-Terminal Negative Voltage Regulators.

These negative regulators are intended as complements to the popular ML7800 series of positive voltage regulations, and they are available in the same voltage options from -5V to -24V.

The ML7900 series employ internal current-limiting.

safe-area protection , and thermal shutdown, making them virtually indestructible.

Package Outline TO-220 (7900A) 1.

OUT 2.

IN 3.

COMMON 32
