28C04A - 4K (512 x 8) CMOS EEPROM

28C04A Description

28C04A 4K (512 x 8) CMOS EEPROM .
The Microchip Technology Inc.

28C04A Features

* Fast Read Access Time
* 150 ns
* CMOS Technology for Low Power Dissipation - 30 mA Active - 100 µA Standby
* Fast Byte Write Time
* 200 µs or 1 ms
* Data Retention >200 years
* Endurance - Minimum 104 Erase/Write Cycles - Automatic Write Operatio

28C04A Applications

* VSS VCC CE OE WE Data Protection Circuitry Chip Enable/ Output Enable Control Logic Auto Erase/Write Timing I/O1 I/O2 Vss NU I/O3 I/O4 I/O5 17 Data Poll Input/Output Buffers Program Voltage Generation A0 L a t c h e s A8 Y Decoder Y Gating X Decoder 4K bit Cell Matrix © 1996 Microchip T

📥 Download Datasheet

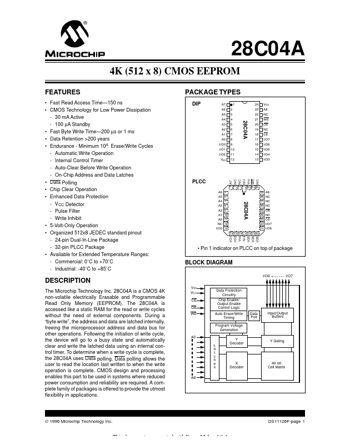

Preview of 28C04A PDF
