28C64A, 64K CMOS EEPROM

Obsolete Device 28C64A 64K (8K x 8) CMOS EEPROM .
The Microchip Technology Inc.

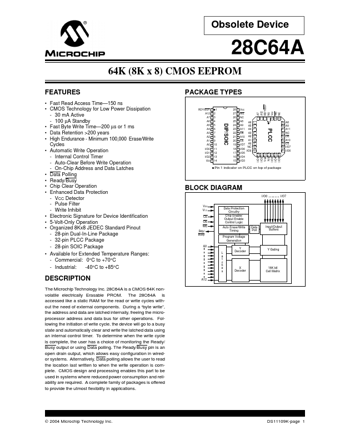

datasheet Preview Page 1 from Datasheet4u.com

28C64A_MicrochipTechnology.pdf

28C64A Datasheet Preview — Preview of 28C64A PDF

Datasheet Details

Part number:

28C64A

Manufacturer:

Microchip ↗ Technology

File Size:

131.03 KB

Description:

64K CMOS EEPROM

Features

* Fast Read Access Time
* 150 ns
* CMOS Technology for Low Power Dissipation - 30 mA Active - 100 µA Standby
* Fast Byte Write Time
* 200 µs or 1 ms
* Data Retention >200 years
* High Endurance - Minimum 100,000 Erase/Write Cycles
* Automat

Applications

* PACKAGE TYPES 4 A7 3 A12 2 RDY/BSY 1 NU 32 Vcc 31 WE 30 NC PLCC DIP/SOIC RDY/BSY
* 1 A12 2 A7 3 A6 4 A5 5 A4 6 A3 7 A2 8 A1 9 A0 10 I/O0 11 I/O1 12 I/O2 13 VSS 14 28 Vcc 27 WE 26 NC 25 A8 24 A9 A6 5 A5 6 23 A11 A4 7 22 OE A3 8 21 A10 A2 9 20 CE A1 10 19 I/O7 A0 11 18 I/O6 N
