28C16A Datasheet, Eeprom, Microchip Technology

28C16A Features

• Eeprom
• Fast Read Access Time
    –150 ns
• CMOS Technology for Low Power Dissipation - 30 mA Active - 100 µA Standby
• Fast Byte Write Time


PDF File Details

Part number:

28C16A

Manufacturer:

Microchip ↗ Technology

File Size:

64.66kb

Download:

📄 Datasheet

Description:

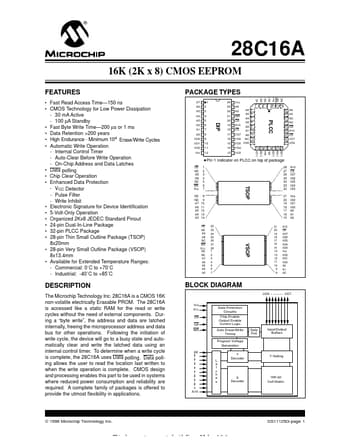

16k (2k x 8) cmos eeprom. The Microchip Technology Inc. 28C16A is a CMOS 16K non-volatile electrically Erasable PROM. The 28C16A is accessed like a static RAM

28C16A Application

• Applications BLOCK DIAGRAM I/O0 I/O7 DIP A10 CE I/07 I/06 I/05 I/04 I/03 Vss I/02 I/01 I/00 A0 A1 A2 TSOP VSOP VSS VCC CE OE WE Data Protecti
