TC1301A - Dual LDO

TC1301A Description

TC1301A/B Dual LDO with Microcontroller RESET Function .
The TC1301A/B combines two Low Dropout (LDO) regulators and a microcontroller RESET function into a single 8-pin MSOP or DFN package.

TC1301A Features

* Dual Output LDO with Microcontroller Reset Monitor Functionality: - VOUT1 = 1.5V to 3.3V @ 300 mA - VOUT2 = 1.5V to 3.3V @ 150 mA - VRESET = 2.20V to 3.20V
* Output Voltage and RESET Threshold Voltage Options Available (See Table 8-1)
* Low Dropout Voltage: - VOUT1 = 104 mV

TC1301A Applications

* Cellular/GSM/PHS Phones
* Battery-Operated Systems
* Hand-Held Medical Instruments
* Portable Computers/PDAs
* Linear Post-Regulators for SMPS
* Pagers Related Literature
* AN765, “Using Microchip’s Micropower LDOs”, DS00765, Microchip Techno

📥 Download Datasheet

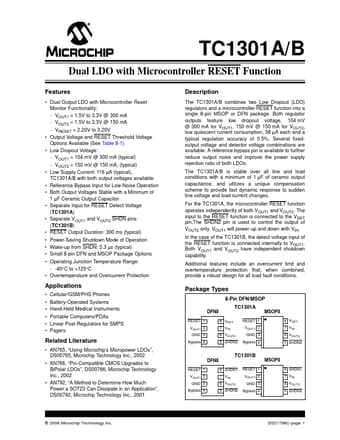

Preview of TC1301A PDF
