TC1301, Low Noise and Medium Power GaAs FETs

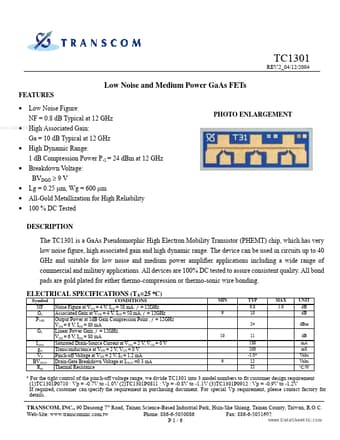

TC1301 REV.2_04/12/2004 Low Noise and Medium Power GaAs FETs .
The TC1301 is a GaAs Pseudomorphic High Electron Mobility Transistor (PHEMT) chip, which has very low noise figure, high associated gain and high dyna.

datasheet Preview Page 1 from Datasheet4u.com

TC1301_Transcom.pdf

TC1301 Datasheet Preview — Preview of TC1301 PDF

Datasheet Details

Part number:

TC1301

Manufacturer:

Transcom

File Size:

241.07 KB

Description:

Low Noise and Medium Power GaAs FETs

Features

* Low Noise Figure: NF = 0.8 dB Typical at 12 GHz www. DataSheet4U. com
* High Associated Gain: Ga = 10 dB Typical at 12 GHz
* High Dynamic Range: 1 dB Compression Power P-1 = 24 dBm at 12 GHz
* Breakdown Voltage: BVDGO ≥ 9 V Lg = 0.25 µm, Wg = 600 µ

Applications

* including a wide range of commercial and military applications. All devices are 100% DC tested to assure consistent quality. All bond pads are gold plated for either thermo-compression or thermo-sonic wire bonding. ELECTRICAL SPECIFICATIONS (TA=25 °C) Symbol NF Ga P1dB GL IDSS gm VP BVDGO Rth CONDIT
