TC1102

Super Low Noise GaAs FETs

TC1102 Features

* Low Noise Figure: NF = 0.5 dB Typical at 12 GHz High Associated Gain: Ga = 13 dB Typical at 12 GHz Lg = 0.25 µm, Wg = 160 µm All-Gold Metallization for High Reliability 100 % DC Tested PHOTO ENLARGEMENT DESCRIPTION The TC1102 is a GaAs Pseudomorphic

TC1102 General Description

The TC1102 is a GaAs Pseudomorphic High Electron Mobility Transistor (PHEMT) chip, which has very low noise figure and high associated gain. The device can be used in circuits up to 40 GHz and suitable for low noise application including a wide range of commercial and military applications. All devi.

TC1102 Datasheet (112.69 KB)

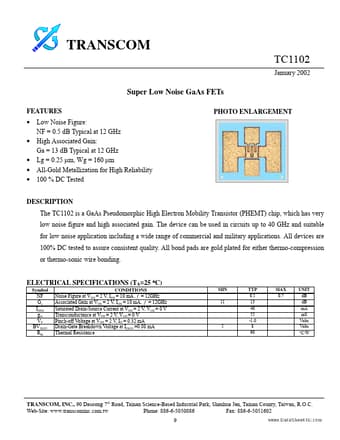

Preview of TC1102 PDF

Datasheet Details

Part number:

TC1102

Manufacturer:

Transcom

File Size:

112.69 KB

Description:

Super low noise gaas fets.
