TC1107 - 300mA CMOS LDO

Product Overview

Microchip

📥 Download Datasheet

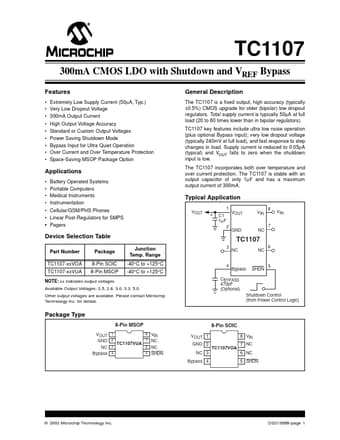

TC1107 300mA CMOS LDO by Microchip - Datasheet Preview — Datasheet preview – TC1107

Datasheet Details

Part number	TC1107
Manufacturer	Microchip
File Size	443.66 KB
Description	300mA CMOS LDO
Datasheet	TC1107 Datasheet
Additional preview pages of the TC1107 datasheet.

Product details

Description

The TC1107 is a fixed output, high accuracy (typically ±0.5%) CMOS upgrade for older (bipolar) low dropout regulators.

Features

Extremely Low Supply Current (50µA, Typ. ) Very Low Dropout Voltage 300mA Output Current High Output Voltage Accuracy Standard or Custom Output Voltages Power Saving Shutdown Mode Bypass Input for Ultra Quiet Operation Over Current and Over Temperature Protection Space-Saving MSOP Package Option General.
