TC110

PFM/PWM Step-Up DC/DC Controller

TC110 Features

* Assured Start-up at 0.9V 50µA (Typ) Supply Current (fOSC = 100kHz) 300mA Output Current @ VIN ≥ 2.7V 0.5µA Shutdown Mode 100kHz and 300kHz Switching Frequency Options

* Programmable Soft-Start

* 84% Typical Efficiency

* Small

TC110 General Description

The TC110 is a step-up (Boost) switching controller that furnishes output currents of up to 300mA while delivering a typical efficiency of 84%. The TC110 normally operates in pulse width modulation mode (PWM), but automatically switches to pulse frequency modulation (PFM) at low output loads for gre.

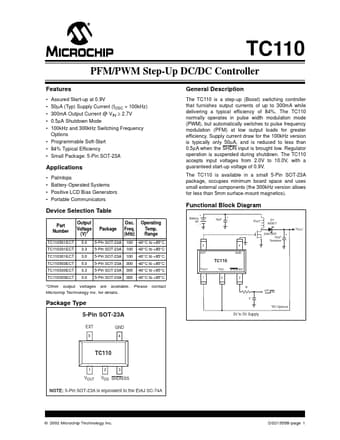

TC110 Datasheet (464.72 KB)

Preview of TC110 PDF

Datasheet Details

Part number:

TC110

Manufacturer:

Microchip ↗

File Size:

464.72 KB

Description:

Pfm/pwm step-up dc/dc controller.
