TC1302A - Low Quiescent Current Dual Output LDO

TC1302A Description

TC1302A/B Low Quiescent Current Dual Output LDO .
The TC1302A/B combines two Low Dropout (LDO) regulators into a single 8-pin MSOP or DFN package.

TC1302A Features

* Dual Output LDO: - VOUT1 = 1.5V to 3.3V @ 300 mA - VOUT2 = 1.5V to 3.3V @ 150 mA
* Output Voltage (See Table 8-1)
* Low Dropout Voltage: - VOUT1 = 104 mV @ 300 mA Typical - VOUT2 = 150 mV @ 150 mA Typical
* Low Supply Current: 116 µA Typical TC1302A/B with both outp

TC1302A Applications

* Cellular/GSM/PHS Phones
* Battery-Operated Systems
* Hand-Held Medical Instruments
* Portable Computers/PDAs
* Linear Post-Regulators for SMPS
* Pagers Related Literature
* AN765, “Using Microchip’s Micropower LDOs”, DS00765, Microchip Techno

📥 Download Datasheet

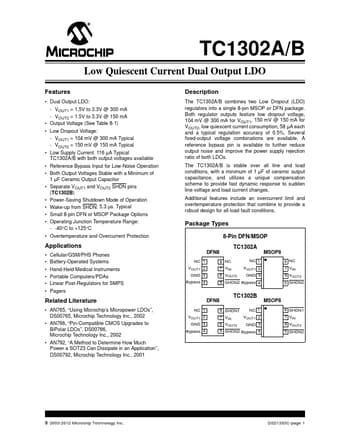

Preview of TC1302A PDF
