TC1301B, TC1301A Datasheet - Microchip Technology

TC1301B, TC1301A, Dual LDO

TC1301A/B Dual LDO with Microcontroller RESET Function .
The TC1301A/B combines two Low Dropout (LDO) regulators and a microcontroller RESET function into a single 8-pin MSOP or DFN package.

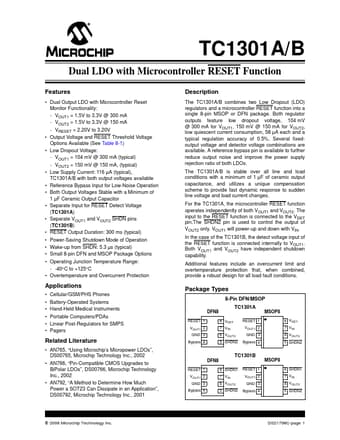

datasheet Preview Page 1 from Datasheet4u.com

TC1301A_MicrochipTechnology.pdf

TC1301B Datasheet Preview — This datasheet PDF includes multiple part numbers: TC1301B, TC1301A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC1301B, TC1301A

Manufacturer:

Microchip ↗ Technology

File Size:

753.83 KB

Description:

Dual LDO

Note:

This datasheet PDF includes multiple part numbers: TC1301B, TC1301A.
Please refer to the document for exact specifications by model.

Features

* Dual Output LDO with Microcontroller Reset Monitor Functionality: - VOUT1 = 1.5V to 3.3V @ 300 mA - VOUT2 = 1.5V to 3.3V @ 150 mA - VRESET = 2.20V to 3.20V
* Output Voltage and RESET Threshold Voltage Options Available (See Table 8-1)
* Low Dropout Voltage: - VOUT1 = 104 mV

Applications

* Cellular/GSM/PHS Phones
* Battery-Operated Systems
* Hand-Held Medical Instruments
* Portable Computers/PDAs
* Linear Post-Regulators for SMPS
* Pagers Related Literature
* AN765, “Using Microchip’s Micropower LDOs”, DS00765, Microchip Techno
