AT93C46E, AT93C46D - Three-Wire Serial EEPROM

Microchip

📥 Download Datasheet

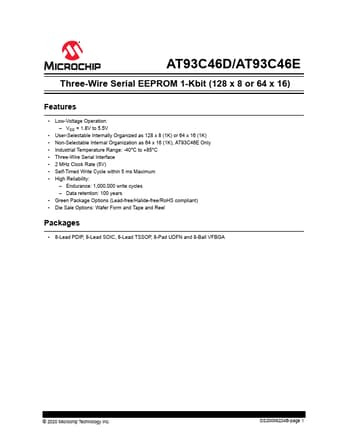

AT93C46E Datasheet Preview — This datasheet PDF includes multiple part numbers: AT93C46E, AT93C46D. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AT93C46E, AT93C46D
Manufacturer: Microchip ↗
File Size: 783.43 KB
Datasheet: AT93C46D-Microchip.pdf
Description: Three-Wire Serial EEPROM
Note: This datasheet PDF includes multiple part numbers: AT93C46E, AT93C46D.
Please refer to the document for exact specifications by model.

AT93C46E Product details

Description

5 2.1.

Features

Low-Voltage Operation:.
VCC = 1.8V to 5.5V.
User-Selectable Internally Organized as 128 x 8 (1K) or 64 x 16 (1K).
Non-Selectable Internal Organization as 64 x 16 (1K), AT93C46E Only.
Industrial Temperature Range: -40°C to +85°C.
Three-Wire Serial Interface.
2 MHz Clock Rate (5V).
Self-Timed Write Cycle within 5 ms Maximum.
High Reliability:.
Endurance: 1,000,000 write cycles.
Data retention: 100 y.
