ATF1508AS

5V 128-Macrocell CPLD

ATF1508AS Features

* High-Density, High-Performance, Electrically-Erasable Complex Programmable Logic Device: - 128 macrocells - 5 product terms per macrocell, expandable up to 40 per macrocell - 84, 100 and 128 pins - 7.5 ns maximum pin-to-pin delay - Registered operation up to 125 MHz - Enhanced routing reso

ATF1508AS General Description

The ATF1508AS(L) is a high-performance, high-density complex programmable logic device (CPLD) that utilizes Microchip’s proven electrically-erasable memory technology. With 128 logic macrocells and up to 100 inputs and I/Os, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs.

ATF1508AS Datasheet (0.99 MB)

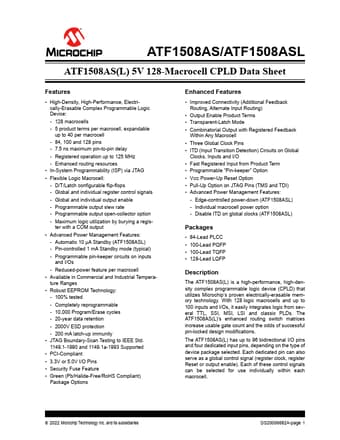

Preview of ATF1508AS PDF

Datasheet Details

Part number:

ATF1508AS

Manufacturer:

Microchip ↗

File Size:

0.99 MB

Description:

5v 128-macrocell cpld.
