ATF1508ASVL - High-performance EE PLD

Product Overview

ATMEL

📥 Download Datasheet

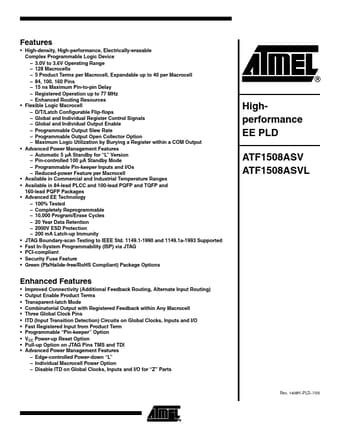

ATF1508ASVL High-performance EE PLD by ATMEL - Datasheet Preview — Datasheet preview – ATF1508ASVL

Datasheet Details

Part number	ATF1508ASVL
Manufacturer	ATMEL
File Size	404.49 KB
Description	High-performance EE PLD
Datasheet	ATF1508ASVL Datasheet
Note	This datasheet PDF includes multiple part numbers: ATF1508ASVL, ATF1508ASV. Please refer to the document for exact specifications by model.
Additional preview pages of the ATF1508ASVL datasheet.

Product details

Features

High-density, High-performance, Electrically-erasable Complex Programmable Logic Device.
3.0V to 3.6V Operating Range.
128 Macrocells.
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell.
84, 100, 160 Pins.
15 ns Maximum Pin-to-pin Delay.
Registered Operation up to 77 MHz.
Enhanced Routing Resources.
Flexible Logic Macrocell.
D/T/Latch Configurable Flip-flops.
Global and Individual Re.
