ATF1508AS - High-performance EE PLD

Product Overview

ATMEL

📥 Download Datasheet

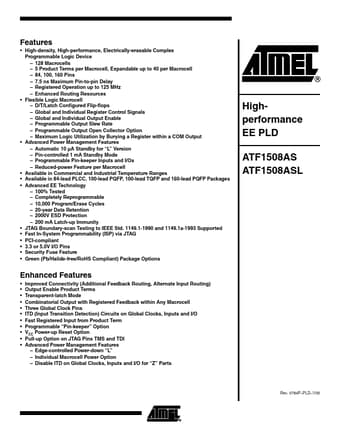

ATF1508AS High-performance EE PLD by ATMEL - Datasheet Preview — Datasheet preview – ATF1508AS

Datasheet Details

Part number	ATF1508AS
Manufacturer	ATMEL
File Size	449.21 KB
Description	High-performance EE PLD
Datasheet	ATF1508AS Datasheet
Additional preview pages of the ATF1508AS datasheet.

Product details

Features

High-density, High-performance, Electrically-erasable Complex Programmable Logic Device.
128 Macrocells.
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell.
84, 100, 160 Pins.
7.5 ns Maximum Pin-to-pin Delay.
Registered Operation up to 125 MHz.
Enhanced Routing Resources.
Flexible Logic Macrocell.
D/T/Latch Configured Flip-flops.
Global and Individual Register Control Signals.
Global.
