ATF1508AZ - High Performance E2 PLD

Product Overview

ATMEL

📥 Download Datasheet

ATF1508AZ High Performance E2 PLD by ATMEL - Datasheet Preview — Datasheet preview – ATF1508AZ

Datasheet Details

Part number	ATF1508AZ
Manufacturer	ATMEL
File Size	392.18 KB
Description	High Performance E2 PLD
Datasheet	ATF1508AZ Datasheet

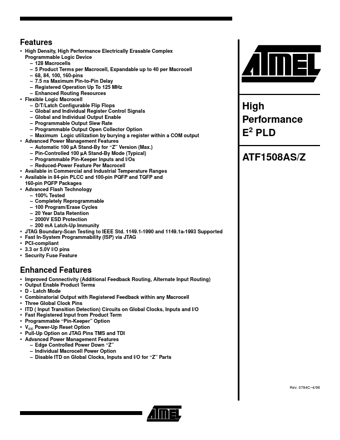

Additional preview pages of the ATF1508AZ datasheet.

Product details

Features

High Density, High Performance Electrically Erasable Complex Programmable Logic Device.
128 Macrocells.
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell.
68, 84, 100, 160-pins.
7.5 ns Maximum Pin-to-Pin Delay.
Registered Operation Up To 125 MHz.
Enhanced Routing Resources.
Flexible Logic Macrocell.
D/T/Latch Configurable Flip Flops.
Global and Individual Register Control Signals.
G.
