MIC2548

Programmable Current-Limit High-Side Switch

Microchip

MIC2548 Features

* 2.7V to 5.5V Input

* Adjustable Current-Limit up to 1.5A

* Reverse Current Flow Blocking (No “Body Diode”)

* 75 μA Typical On-State Supply Current

* 1 μA Typical Off-State Supply Current

* 120 mΩ Maximum On-Resistance

* Open-Drain Fault Flag

MIC2548 General Description

The MIC2544 and MIC2548 are integrated, high-side power switches optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544/48 are cost-effective, highly integrated solutions that require few external co.

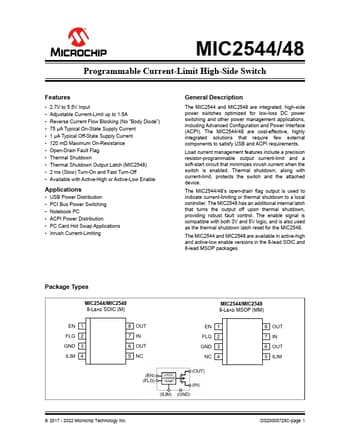

MIC2548 Datasheet (2.69 MB)
