MIC2514 Datasheet, Switch, Micrel Semiconductor

MIC2514 Features

  • Switch
  • MOSFET on-resistance
      – 1.5Ω typical at 5V
      – 0.95Ω typical at 12V
  • 3V to 13.5V input
  • 25µA typical on-state supply current at

PDF File Details

Part number:

MIC2514

Manufacturer:

Micrel Semiconductor

File Size:

172.25kb

Download:

📄 Datasheet

Description:

Integrated high-side switch. The MIC2514 is an integrated high-side power switch that consists of a TTL compatible input and protected Pchannel MOSFET. The MIC251

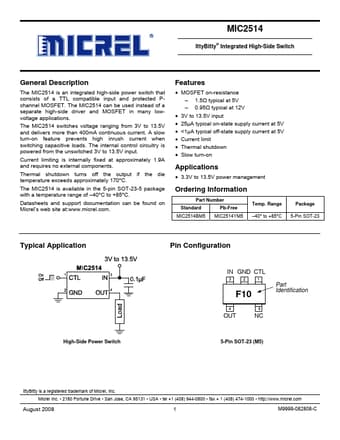

Datasheet Preview: MIC2514 📥 Download PDF (172.25kb)
Page 2 of MIC2514 Page 3 of MIC2514

MIC2514 Application

  • Applications The MIC2514 switches voltage ranging from 3V to 13.5V and delivers more than 400mA continuous current. A slow turn-on feature prevents
