MIC45205 Datasheet - Microchip

MIC45205 26V/6A DC/DC Power-Module

MIC45205 is a synchronous step-down regulator module, featuring a unique adaptive ON-time control architecture. The module incorporates a DC/DC controller, power MOSFETs, bootstrap diode, bootstrap capacitor, and an inductor in a single package; simplifying the design and layout process for the end .

MIC45205 Features

* No Compensation Required

* Up to 6A Output Current

* >93% Peak Efficiency

* Output Voltage: 0.8V to 0.85 x VIN with ±1% Accuracy

* Adjustable Switching Frequency from 200 kHz to 600 kHz

* Enable Input and Open-Drain Power Good Output

* HyperL

MIC45205 Datasheet (3.39 MB)

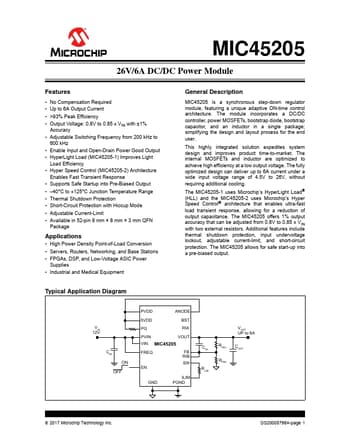

Preview of MIC45205 PDF

Datasheet Details

Part number:

MIC45205

Manufacturer:

Microchip ↗

File Size:

3.39 MB

Description:

26v/6a dc/dc power-module.
