MIC45212-1 14A DC-to-DC Power-Module

The MIC45212 is a synchronous, step-down regulator module, featuring a unique adaptive ON-time control architecture. The module incorporates a DC-to-DC controller, power MOSFETs, bootstrap diode, bootstrap capacitor and an inductor in a single package, simplifying the design and layout process for t.

MIC45212-1 Features

* No Compensation Required

* Up to 14A Output Current

* >93% Peak Efficiency

* Output Voltage: 0.8V to 0.85

* VIN with ±1% Accuracy

* Adjustable Switching Frequency from 200 kHz to 600 kHz

* Enable Input and Open-Drain Power Good Output

* Hyp

MIC45212-1-Microchip.pdf

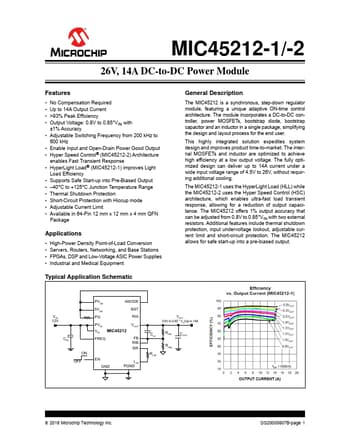

Preview of MIC45212-1 PDF
