MIC45208-1 10A DC-to-DC Power-Module

The MIC45208-1/-2 is a synchronous, step-down regulator module, featuring a unique adaptive ON-time control architecture. The module incorporates a DC-to-DC controller, power MOSFETs, bootstrap diode, bootstrap capacitor and an inductor in a single package, simplifying the design and layout process .

MIC45208-1 Features

* No Compensation Required

* Up to 10A Output Current

* >93% Peak Efficiency

* Output Voltage: 0.8V to 0.85

* VIN with ±1% Accuracy

* Adjustable Switching Frequency from 200 kHz to 600 kHz

* Enable Input and Open-Drain Power Good (PG) Output

MIC45208-1-Microchip.pdf

Preview of MIC45208-1 PDF

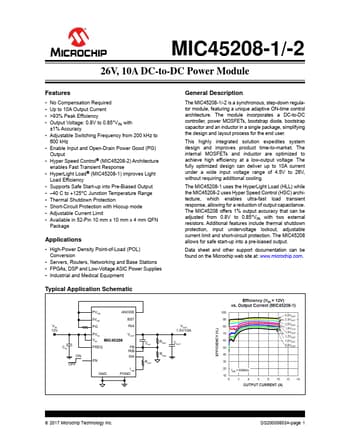

MIC45208-1 Datasheet Preview Page 2 MIC45208-1 Datasheet Preview Page 3
