MIC45212-2, MIC45212-1 - 14A DC-to-DC Power-Module

MIC45212-2 Description

MIC45212-1/-2 26V, 14A DC-to-DC Power Module .
The MIC45212 is a synchronous, step-down regulator module, featuring a unique adaptive ON-time control architecture.

MIC45212-2 Features

* No Compensation Required
* Up to 14A Output Current
* >93% Peak Efficiency
* Output Voltage: 0.8V to 0.85
* VIN with ±1% Accuracy
* Adjustable Switching Frequency from 200 kHz to 600 kHz
* Enable Input and Open-Drain Power Good Output
* Hyp

MIC45212-2 Applications

* High-Power Density Point-of-Load Conversion
* Servers, Routers, Networking, and Base Stations
* FPGAs, DSP and Low-Voltage ASIC Power Supplies

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MIC45212-2, MIC45212-1. Please refer to the document for exact specifications by model.

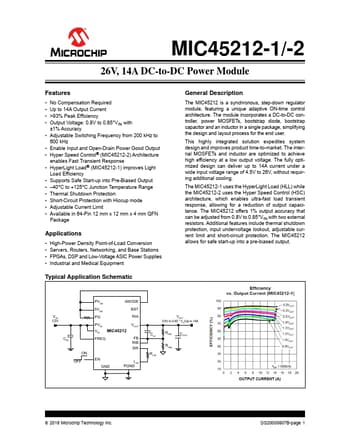

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MIC45212-2, MIC45212-1
Manufacturer
Microchip ↗
File Size
2.20 MB
Datasheet
MIC45212-1-Microchip.pdf
Description
14A DC-to-DC Power-Module
Note
This datasheet PDF includes multiple part numbers: MIC45212-2, MIC45212-1.
Please refer to the document for exact specifications by model.
