MSCSM120AM042T6AG Datasheet - Microchip

MSCSM120AM042T6AG, SiC MOSFET

MSCSM120AM042T6AG Phase Leg SiC MOSFET Power Module : : Product Overview The MSCSM120AM042T6AG device is a full bridge 1200V, 495A phase leg sili.

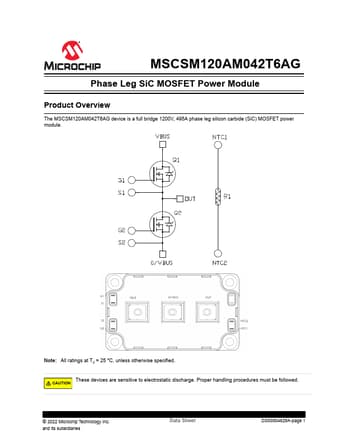

datasheet Preview Page 1 from Datasheet4u.com

MSCSM120AM042T6AG-Microchip.pdf

MSCSM120AM042T6AG Datasheet Preview — Preview of MSCSM120AM042T6AG PDF

Datasheet Details

Part number:

MSCSM120AM042T6AG

Manufacturer:

Microchip ↗

File Size:

488.18 KB

Description:

SiC MOSFET

Features

* The following are the key features of the MSCSM120AM042T6AG device:
* SiC Power MOSFET
* Low RDS(on)
* High temperature performance
* Kelvin source for easy drive
* Low stray inductance
* M5 power connectors
* Internal thermistor for temperatur

Applications

* Welding converters
* Switched mode power supplies
* Uninterruptible power supplies
* EV motor and traction drive © 2022 Microchip Technology Inc. and its subsidiaries Data Sheet DS00004629A-page 2 MSCSM120AM042T6AG Electrical Specifications 1. Electrical Speci
