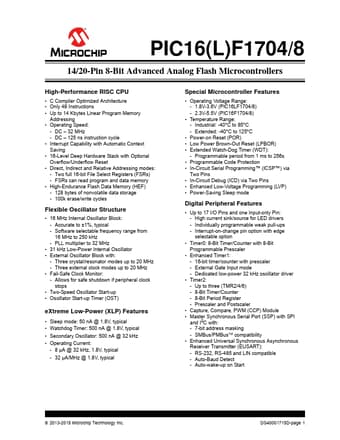

PIC16(L)F1704/8
14/20-Pin 8-Bit Advanced Analog Flash Microcontrollers
High-Performance RISC CPU
• C Compiler Optimized Architecture • Only 49 Instructions • Up to 14 Kbytes Linear Program Memory
Addressing • Operating Speed:
- DC – 32 MHz - DC – 125 ns instruction cycle • Interrupt Capability with Automatic Context Saving • 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset • Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) - FSRs can read program and data memory • High-Endurance Flash Data Memory (HEF) - 128 bytes of nonvolatile data storage - 100k erase/write cycles
Flexible Oscillator Structure
• 16 MHz Internal Oscillator Block: - Accurate to ±1%, typical - Software selectable frequency range from 16 MHz to 250 kHz - PLL
