PIC16LF1708, PIC16F1704 Datasheet - Microchip

PIC16LF1708 14/20-Pin 8-Bit Advanced Analog Flash Microcontrollers

PIC16(L)F1704/8 14/20-Pin 8-Bit Advanced Analog Flash Microcontrollers High-Performance RISC CPU C Compiler Optimized Architecture Only 49 Instructions Up to 14 Kbytes Linear Program Memory Addressing Operating Speed: - DC 32 MHz - DC 125 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative .

PIC16LF1708 Features

* Sleep mode: 50 nA @ 1.8V, typical

* Watchdog Timer: 500 nA @ 1.8V, typical

* Secondary Oscillator: 500 nA @ 32 kHz

* Operating Current: - 8 µA @ 32 kHz, 1.8V, typical - 32 µA/MHz @ 1.8V, typical Special Microcontroller Features

* Operating Voltage Range: -

PIC16F1704-Microchip.pdf

This datasheet PDF includes multiple part numbers: PIC16LF1708, PIC16F1704. Please refer to the document for exact specifications by model.

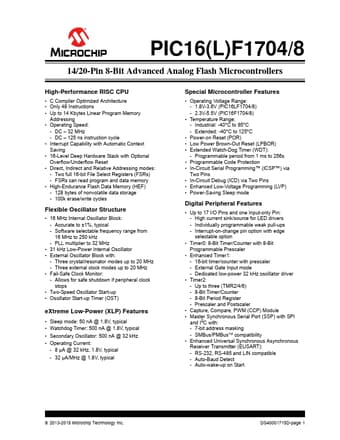

PIC16LF1708 Datasheet Preview Page 2 PIC16LF1708 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC16LF1708, PIC16F1704

Manufacturer:

Microchip ↗

File Size:

4.80 MB

Description:

14/20-pin 8-bit advanced analog flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1708, PIC16F1704.
Please refer to the document for exact specifications by model.
