PIC16LF1716, PIC16LF1713 Datasheet - Microchip

PIC16LF1716 Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers

PIC16(L)F1713/6 microcontrollers combine Intelligent Analog integration with low cost and extreme low power (XLP) to suit a variety of general purpose applications. These 28-pin devices deliver on-chip op amps, Core Independent Peripherals (CLC, NCO and COG), Peripheral Pin Select and Zero-Cross De.

PIC16LF1716 Features

* C Compiler Optimized RISC Architecture

* Only 49 Instructions

* Operating Speed: - 0-32 MHz clock input - 125 ns minimum instruction cycle

* Interrupt Capability

* 16-Level Deep Hardware Stack

* Up to Four 8-bit Timers

* One 16-bit Timer

PIC16LF1713-Microchip.pdf

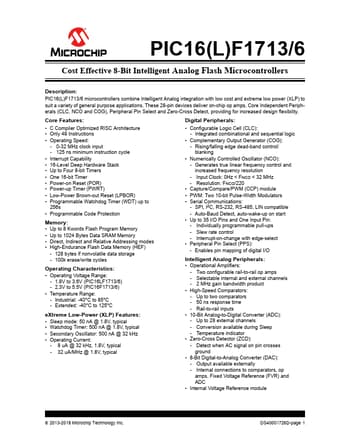

PIC16LF1716 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16LF1716, PIC16LF1713. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC16LF1716, PIC16LF1713

Manufacturer:

Microchip ↗

File Size:

5.74 MB

Description:

Cost effective 8-bit intelligent analog flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1716, PIC16LF1713.
Please refer to the document for exact specifications by model.
