PIC16LF1787 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers

PIC16(L)F1784/6/7 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers High-Performance RISC CPU: Only 49 Instructions Operating Speed: - DC 32 MHz clock input - DC 125 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) - FSRs can read prog.

PIC16LF1787 Features

* Up to 8 KW Flash Program Memory: - Self-programmable under software control - Programmable code protection - Programmable write protection

* 256 Bytes of Data EEPROM

* Up to 1024 Bytes of RAM High Performance PWM Controller:

* Three Programmable Switch Mode Control

PIC16LF1787 Datasheet (4.58 MB)

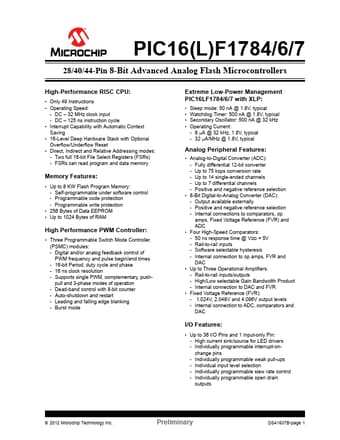

PIC16LF1787 Datasheet Preview — Preview of PIC16LF1787 PDF

Datasheet Details

Part number:

PIC16LF1787

Manufacturer:

Microchip ↗ Technology

File Size:

4.58 MB

Description:

28/40/44-pin 8-bit advanced analog flash microcontrollers.
