PIC16LF1788, PIC16F1788 Datasheet - Microchip

PIC16LF1788 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers

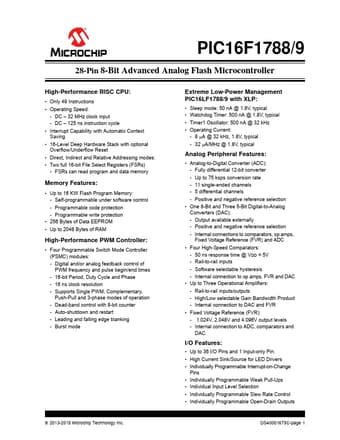

PIC16F1788/9 28-Pin 8-Bit Advanced Analog Flash Microcontroller High-Performance RISC CPU: Only 49 Instructions Operating Speed: - DC 32 MHz clock input - DC 125 ns instruction cycle Interrupt Capability with Automatic Context Saving 16-Level Deep Hardware Stack with optional Overflow/Underflow Reset Direct, Indirect and Relative Addressing modes: Two full 16-bit File Select Registers (FSRs) - FSRs can read program .

PIC16LF1788 Features

* Up to 16 KW Flash Program Memory: - Self-programmable under software control - Programmable code protection - Programmable write protection

* 256 Bytes of Data EEPROM

* Up to 2048 Bytes of RAM High-Performance PWM Controller:

* Four Programmable Switch Mode Control

PIC16F1788-Microchip.pdf

PIC16LF1788 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16LF1788, PIC16F1788. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC16LF1788, PIC16F1788

Manufacturer:

Microchip ↗

File Size:

5.87 MB

Description:

28/40/44-pin 8-bit advanced analog flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1788, PIC16F1788.
Please refer to the document for exact specifications by model.
