PIC16LF1773, PIC16F1773 - 8-Bit Flash Microcontroller

Microchip

📥 Download Datasheet

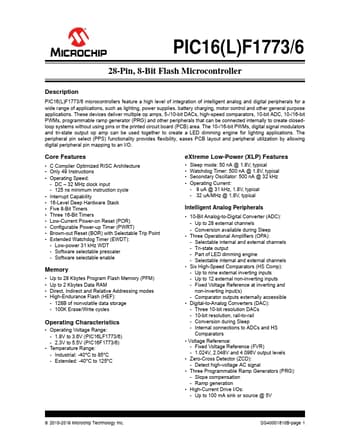

PIC16LF1773 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16LF1773, PIC16F1773. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PIC16LF1773, PIC16F1773
Manufacturer	Microchip
File Size	6.40 MB
Description	8-Bit Flash Microcontroller
Datasheet	PIC16F1773-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC16LF1773, PIC16F1773. Please refer to the document for exact specifications by model.

PIC16LF1773 Product details

Description

PIC16(L)F1773/6 microcontrollers feature a high level of integration of intelligent analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications.

Features

C Compiler Optimized RISC Architecture.
Only 49 Instructions.
Operating Speed: - DC.
32 MHz clock input - 125 ns minimum instruction cycle.
Interrupt Capability.
16-Level Deep Hardware Stack.
Five 8-Bit Timers.
Three 16-Bit Timers.
Low-Current Power-on Reset (POR).
Configurable Power-up Timer (PWRT).
Brown-out Reset (BOR) with Selectable Trip Point.
Extended Watchdog Timer (EWDT): - Low-p.
