PIC16LF1778, PIC16F1777, 8-Bit Flash Microcontroller

PIC16(L)F1777/8/9 28/40/44-Pin, 8-Bit Flash Microcontroller .
PIC16(L)F1777/8/9 microcontrollers feature a high level of integration of intelligent analog and digital peripherals for a wide range of applications,.

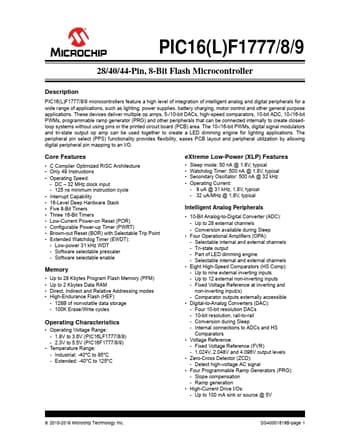

datasheet Preview Page 1 from Datasheet4u.com

PIC16F1777-Microchip.pdf

PIC16LF1778 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16LF1778, PIC16F1777. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC16LF1778, PIC16F1777

Manufacturer:

Microchip ↗

File Size:

7.28 MB

Description:

8-Bit Flash Microcontroller

Note:

This datasheet PDF includes multiple part numbers: PIC16LF1778, PIC16F1777.
Please refer to the document for exact specifications by model.

Features

* C Compiler Optimized RISC Architecture
* Only 49 Instructions
* Operating Speed: - DC
* 32 MHz clock input - 125 ns minimum instruction cycle
* Interrupt Capability
* 16-Level Deep Hardware Stack
* Five 8-Bit Timers
* Three 16-Bit Tim

Applications

* such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple op amps, 5-/10-bit DACs, high-speed comparators, 10-bit ADC, 10-/16-bit PWMs, programmable ramp generator (PRG) and other peripherals that can be connected intern
