SY88403BL - 3.3V 4.25 Gbps CML Low-Power Limiting Post Amplifier

SY88403BL Description

SY88403BL 3.3V 4.25 Gbps CML Low-Power Limiting Post Amplifier with TTL LOS .
The SY88403BL is a low-power limiting post amplifier optimized for copper applications.

SY88403BL Features

* Multi-Rate up to 4.25 Gbps Operation
* 5 mVPP Input Sensitivity
* Low Noise 50Ω CML Data Outputs - 800 mVPP Output Swing - 60 ps Edge Rates - 1psRMS Typ. Random Jitter - 10psPP Typ. Deterministic Jitter
* Chatter-Free Loss-of-Signal (LOS) Output - 3.5 dB Electrical

SY88403BL Applications

* 1.062 Gbps, 2.125 Gbps, and 4.25 Gbps Fibre Channel
* Cable Driver
* Small Form Factor (SFF) and Small Form Factor Pluggable (SFP) Transceivers

📥 Download Datasheet

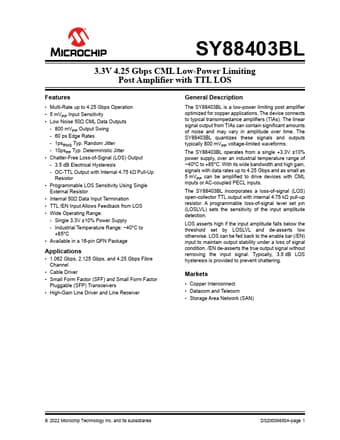

Preview of SY88403BL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY88403BL
Manufacturer
Microchip ↗
File Size
2.20 MB
Datasheet
SY88403BL-Microchip.pdf
Description
3.3V 4.25 Gbps CML Low-Power Limiting Post Amplifier
