SY89306V - 3.3V/5V 2.5GHz Differential PECL/ECL Receiver/Buffer

SY89306V Description

SY89306V 3.3V/5V 2.5 GHz Differential PECL/ECL Receiver/Buffer .
The SY89306V is a high-speed differential buffer/receiver.

SY89306V Features

* Maximum Frequency > 2.5 GHz
* Inputs (D, /D) Include 75 kΩ Input Pull-Down Resistors
* 100K PECL/ECL Compatible
* Industrial Temperature Range:
* 40°C to +85°C
* Available in an Ultra Small 8-Pin 2 mm x 2 mm DFN Package Package Type SY89306V 8-Lead DF

SY89306V Applications

* Whenever used, the VBB pin should be bypassed to ground via a 0.01 μF capacitor. VBB reference can only sink/source 0.5 mA. Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW. Block Diagram NC D /D VBB 1 2 3 4 8 VCC 7Q 6 /Q 5 VEE DQ /D AV 40V/V /Q 

📥 Download Datasheet

Preview of SY89306V PDF

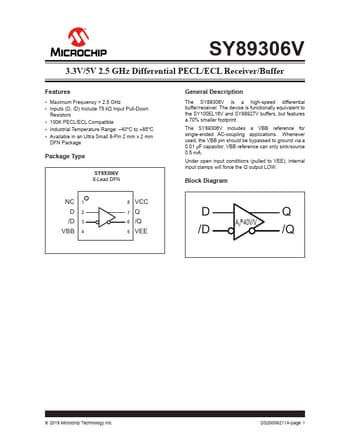

datasheet Preview Page 2 datasheet Preview Page 3
