SY89316V PECL/ECL DIFFERENTIAL RECEIVER/BUFFER

Micrel Semiconductor

Description

Micrel, Inc.NOT RECOMMENDED FOR NEW DESIGNS 3.3V/5V 2.5GHz PECL/ECL DIFFERENTIAL RECEIVER/BUFFER Precision Edge® PrecisioSnY8E93d0g6/e31®6V SY89306.
The SY89306V and SY89316V are a high-speed buffer/ receivers.

📥 Download Datasheet

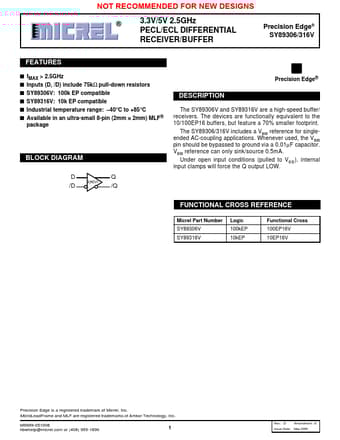

SY89316V Datasheet Preview — Preview of SY89316V PDF

Datasheet Specifications

Part number: SY89316V
Manufacturer: Micrel Semiconductor
File Size: 77.17 KB
Datasheet: SY89316V_MicrelSemiconductor.pdf
Description: PECL/ECL DIFFERENTIAL RECEIVER/BUFFER

Features

* s fMAX > 2.5GHz s Inputs (D, /D) include 75kΩ pull-down resistors s SY89306V: 100k EP compatible s SY89316V: 10k EP compatible s Industrial temperature range:
* 40°C to +85°C s Available in an ultra-small 8-pin (2mm × 2mm) MLF® package BLOCK DIAGRAM DQ /D AV 40V/V /Q Precision Edge® DESCRIP

Applications

* Whenever used, the VBB pin should be bypassed to ground via a 0.01µF capacitor. VBB reference can only sink/source 0.5mA. Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW. FUNCTIONAL CROSS REFERENCE Micrel Part Number SY89306V SY89316V Logic 100kEP 1
