TC1413N

3A High-Speed MOSFET Drivers

TC1413N Features

* Latch-Up Protected: Withstands 500 mA Reverse Current

* Input Withstands Negative Inputs Up to 5V

* Electrostatic Discharge (ESD) Protected: 2.0 kV (HBM) and 400V (MM)

* High Peak Output Current: 3A

* Wide Input Supply Voltage Operating Range: - 4.5V to 16V

TC1413N General Description

The TC1413/TC1413N are 3A CMOS buffers/drivers. They do not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking of either polar.

TC1413N Datasheet (789.17 KB)

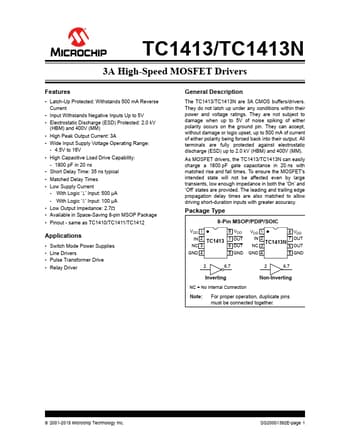

Preview of TC1413N PDF

Datasheet Details

Part number:

TC1413N

Manufacturer:

Microchip ↗

File Size:

789.17 KB

Description:

3a high-speed mosfet drivers.
