TC1412

HIGH-SPEED MOSFET DRIVERS

TC1412 Features

* s s s s s s s s s s Latch-Up Protected: Will Withstand 500mA Reverse Current Input Will Withstand Negative Inputs Up to 5V ESD Protected 4kV High Peak Output Current 2A Wide Operating Range 4.5V to 16V High Capacitive Load Drive Capability 1000pF in 18nsec Short Delay Time 35nsec Typ Consistent

TC1412 General Description

The TC1412/1412N are 2A CMOS buffer/drivers. They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking of either polarity occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of .

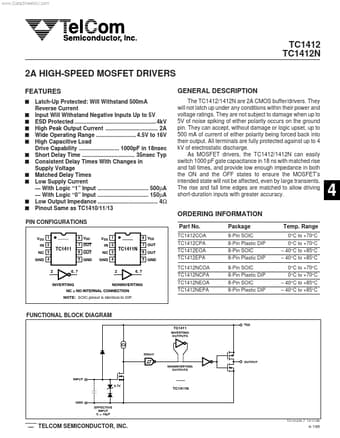

TC1412 Datasheet (76.75 KB)

Preview of TC1412 PDF

Datasheet Details

Part number:

TC1412

Manufacturer:

TelCom Semiconductor

File Size:

76.75 KB

Description:

High-speed mosfet drivers.
