TC1413

HIGH-SPEED MOSFET DRIVERS

TC1413 Features

* s s s s s s s s s s Latch-Up Protected: Will Withstand 500mA Reverse Current Input Will Withstand Negative Inputs Up to 5V ESD Protected 4kV High Peak Output Current 3A Wide Operating Range 4.5V to 16V High Capacitive Load Drive Capability 180 pF in 20nsec Short Delay Time 35nsec Typ Consistent

TC1413 General Description

The TC1413/1413N are 3A CMOS buffer/drivers. They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking of either polarity that occurs on the ground pin. They can accept, without damage or logic upset, up to 500 m.

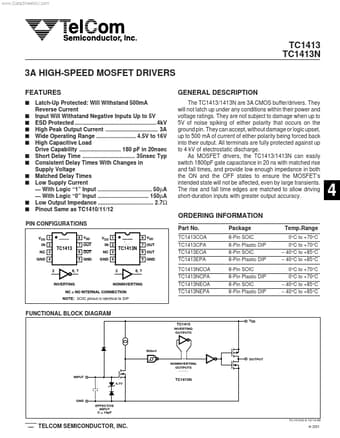

TC1413 Datasheet (77.54 KB)

Preview of TC1413 PDF

Datasheet Details

Part number:

TC1413

Manufacturer:

TelCom Semiconductor

File Size:

77.54 KB

Description:

High-speed mosfet drivers.
