ZL30734, ZL30731, PTP & SyncE Network Synchronizers

ZL30731 - ZL30735 PTP & SyncE Network Synchronizers with up to 5 Channels, 10 Inputs, 20 Outputs Product Brief .

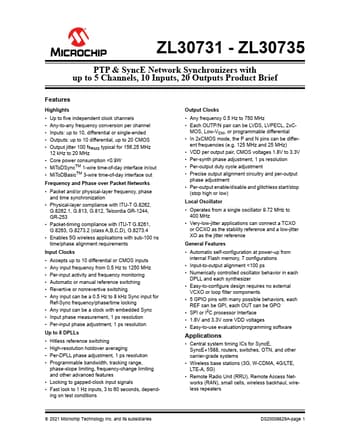

datasheet Preview Page 1 from Datasheet4u.com

ZL30731-Microchip.pdf

ZL30734 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZL30734, ZL30731. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZL30734, ZL30731

Manufacturer:

Microchip ↗

File Size:

749.82 KB

Description:

PTP & SyncE Network Synchronizers

Note:

This datasheet PDF includes multiple part numbers: ZL30734, ZL30731.
Please refer to the document for exact specifications by model.

Features

* Highlights
* Up to five independent clock channels
* Any-to-any frequency conversion per channel
* Inputs: up to 10, differential or single-ended
* Outputs: up to 10 differential, up to 20 CMOS
* Output jitter 100 fsRMS typical for 156.25 MHz 12 kHz to 20 MHz

Applications

* with sub-100 ns time/phase alignment requirements Input Clocks
* Accepts up to 10 differential or CMOS inputs
* Any input frequency from 0.5 Hz to 1250 MHz
* Per-input activity and frequency monitoring
* Automatic or manual reference switching
* Revertive or n
