ZL30772, ZL30771 Datasheet - Microsemi

ZL30772, ZL30771, IEEE 1588 & Synchronous Ethernet Packet Clock Network Synchronizers

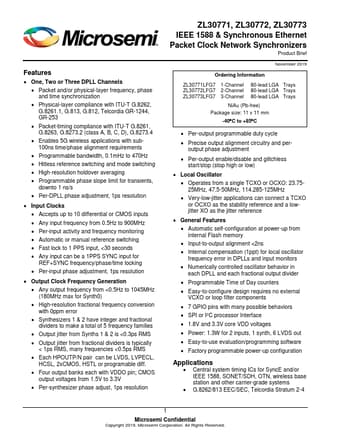

datasheet Preview Page 1 from Datasheet4u.com

ZL30771-Microsemi.pdf

ZL30772 Datasheet Preview — This datasheet PDF includes multiple part numbers: ZL30772, ZL30771. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZL30772, ZL30771

Manufacturer:

Microsemi ↗

File Size:

356.56 KB

Description:

IEEE 1588 & Synchronous Ethernet Packet Clock Network Synchronizers

Note:

This datasheet PDF includes multiple part numbers: ZL30772, ZL30771.
Please refer to the document for exact specifications by model.

Features

* One, Two or Three DPLL Channels
* Packet and/or physical-layer frequency, phase and time synchronization
* Physical-layer compliance with ITU-T G.8262, G.8261.1, G.813, G.812, Telcordia GR-1244, GR-253
* Packet-timing compliance with ITU-T G.8261, G.8263, G.8273.2 (

Applications

* with sub100ns time/phase alignment requirements
* Programmable bandwidth, 0.1mHz to 470Hz
* Hitless reference switching and mode switching
* High-resolution holdover averaging
* Programmable phase slope limit for transients, downto 1 ns/s
* Per-DPLL phase adju
