ZL30130 - Stratum 2/3/3E System Synchronizer/SETS

Product Overview

Microsemi

Part number	ZL30130
Manufacturer	Microsemi
File Size	1.53 MB
Description	Stratum 2/3/3E System Synchronizer/SETS
Datasheet	ZL30130 Datasheet

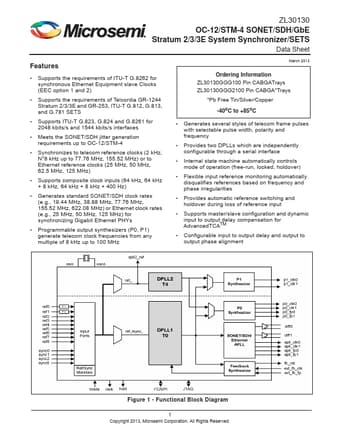

Additional preview pages of the ZL30130 datasheet.

Supports the requirements of ITU-T G.8262 for synchronous Ethernet Equipment slave Clocks (EEC option 1 and 2).
Supports the requirements of Telcordia GR-1244 Stratum 2/3/3E and GR-253, ITU-T G.812, G.813, and G.781 SETS.
Supports ITU-T G.823, G.824 and G.8261 for 2048 kbits/s and 1544 kbits/s interfaces.
Meets the SONET/SDH jitter generation requirements up to OC-12/STM-4.
Synchronizes to telecom reference clocks (2 kHz, N.
8 kHz up to 77.76 MHz,.
