ZL30107 Datasheet, synchronizer equivalent, Zarlink Semiconductor

ZL30107 Features

• Synchronizer
• Single chip low cost solution for synchronizing an Ethernet PHY to a standard telecom clock Generates an IEEE 802.3 jitter compliant 25 MHz Gigabit Etherne

PDF File Details

Part number:

ZL30107

Manufacturer:

Zarlink Semiconductor

File Size:

211.42kb

Download:

📄 Datasheet

Description:

Gbe line card synchronizer. Pin # B1 A3 B4 D8 G5 Name REF0 REF1 REF2 CLK RST I/O Type Id Description Shortform Data Sheet Reference Inputs (LVCMOS, Schmitt Tri

ZL30107 Application

• Applications

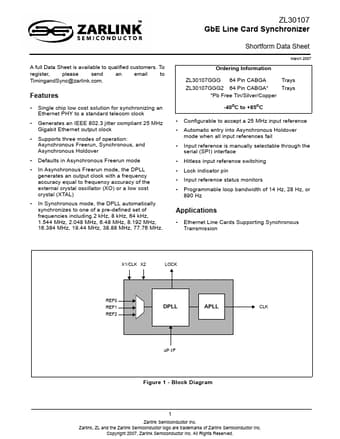

• Ethernet Line Cards Supporting Synchronous Transmission X1/CLK X2 LOCK REF0 REF1 REF2 DPLL APLL CLK uP I/F Figure 1 -
