ZL30108 - SONET/SDH Network Interface DPLL

Product Overview

Zarlink Semiconductor

Part number	ZL30108
Manufacturer	Zarlink Semiconductor
File Size	692.00 KB
Description	SONET/SDH Network Interface DPLL
Datasheet	ZL30108 Datasheet

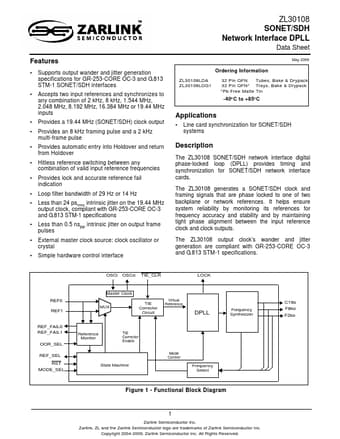

Additional preview pages of the ZL30108 datasheet.

The ZL30108 SONET/SDH network interface digital phase-locked loop (DPLL) provides timing and synchronization for SONET/SDH network interface cards.

Supports output wander and jitter generation specifications for GR-253-CORE OC-3 and G.813 STM-1 SONET/SDH interfaces.
Accepts two input references and synchronizes to any combination of 2 kHz, 8 kHz, 1.544 MHz, 2.048 MHz, 8.192 MHz, 16.384 MHz or 19.44 MHz inputs.
Provides a 19.44 MHz (SONET/SDH) clock output.
Provides an 8 kHz framing pulse and a 2 kHz multi-frame pulse.
Provides automatic entry into Holdover and return from Holdover.
