ZL30136 - Network Interface Synchronizer

Product Overview

Microsemi

Part number	ZL30136
Manufacturer	Microsemi
File Size	1.09 MB
Description	Network Interface Synchronizer
Datasheet	ZL30136 Datasheet

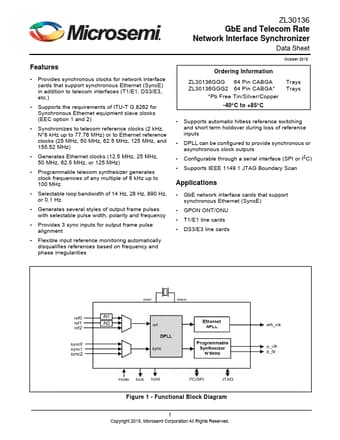

Additional preview pages of the ZL30136 datasheet.

Provides synchronous clocks for network interface cards that support synchronous Ethernet (SyncE) in addition to telecom interfaces (T1/E1, DS3/E3, etc. ).
Supports the requirements of ITU-T G.8262 for Synchronous Ethernet equipment slave clocks (EEC option 1 and 2).
Synchronizes to telecom reference clocks (2 kHz, N.
8 kHz up to 77.76 MHz) or to Ethernet reference clocks (25 MHz, 50 MHz, 62.5 MHz, 125 MHz, and 155.52 MHz).
Generates Ethernet clocks (12.5 M.
