M25P10A - 1Mb 3V Serial Flash Embedded Memory

M25P10A Description

M25P10A Serial Flash Embedded Memory .
5 Signal Descriptions 7 SPI Modes 8 Operating Features 10 Page Programming 10 Sector Erase, Bulk Erase 10 Polling during a Write, Program, or Er.

M25P10A Features

* M25P10A 1Mb 3V Serial Flash Embedded Memory Features
* SPI bus-compatible serial interface
* 1Mb Flash memory
* 50 MHz clock frequency (maximum)
* 2.3V to 3.6V single supply voltage
* Page program (up to 256 bytes) in 1.4ms (TYP)
* Erase capability

📥 Download Datasheet

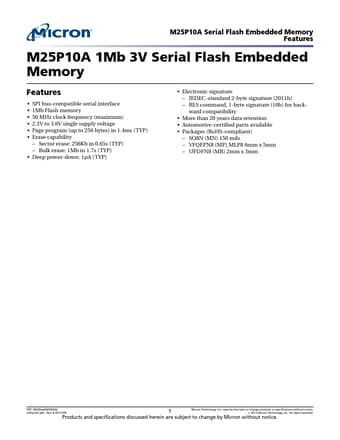

Preview of M25P10A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M25P10A
Manufacturer
Micron
File Size
590.42 KB
Datasheet
M25P10A-Micron.pdf
Description
1Mb 3V Serial Flash Embedded Memory
