M25P05 - 512 Kbit/ Low Voltage/ Serial Flash Memory

The M25P05 is a 512 Kbit (64K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 128 bytes at a time, using the Page Program instruction. The memory is organized as 2 sectors, each containing 256 pages. .

M25P05 Features

* SUMMARY This device is now designated as “Not for New Design”. Please use the M25P05-A in all future designs (as described in application note AN1511). s 512 Kbit of Flash Memory s Figure 1. Packages Page Program (up to 128 Bytes) in 3 ms (typical) Sector Erase (256 Kbit) in 1 s (typical) Bulk Era

M25P05_STMicroelectronics.pdf

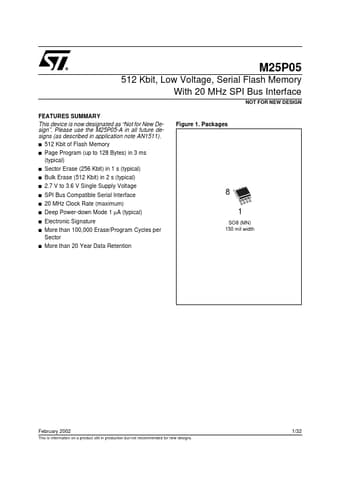

M25P05 Datasheet Preview — Preview of M25P05 PDF

Datasheet Details

Part number:

M25P05

Manufacturer:

STMicroelectronics ↗

File Size:

194.61 KB

Description:

512 kbit/ low voltage/ serial flash memory.
